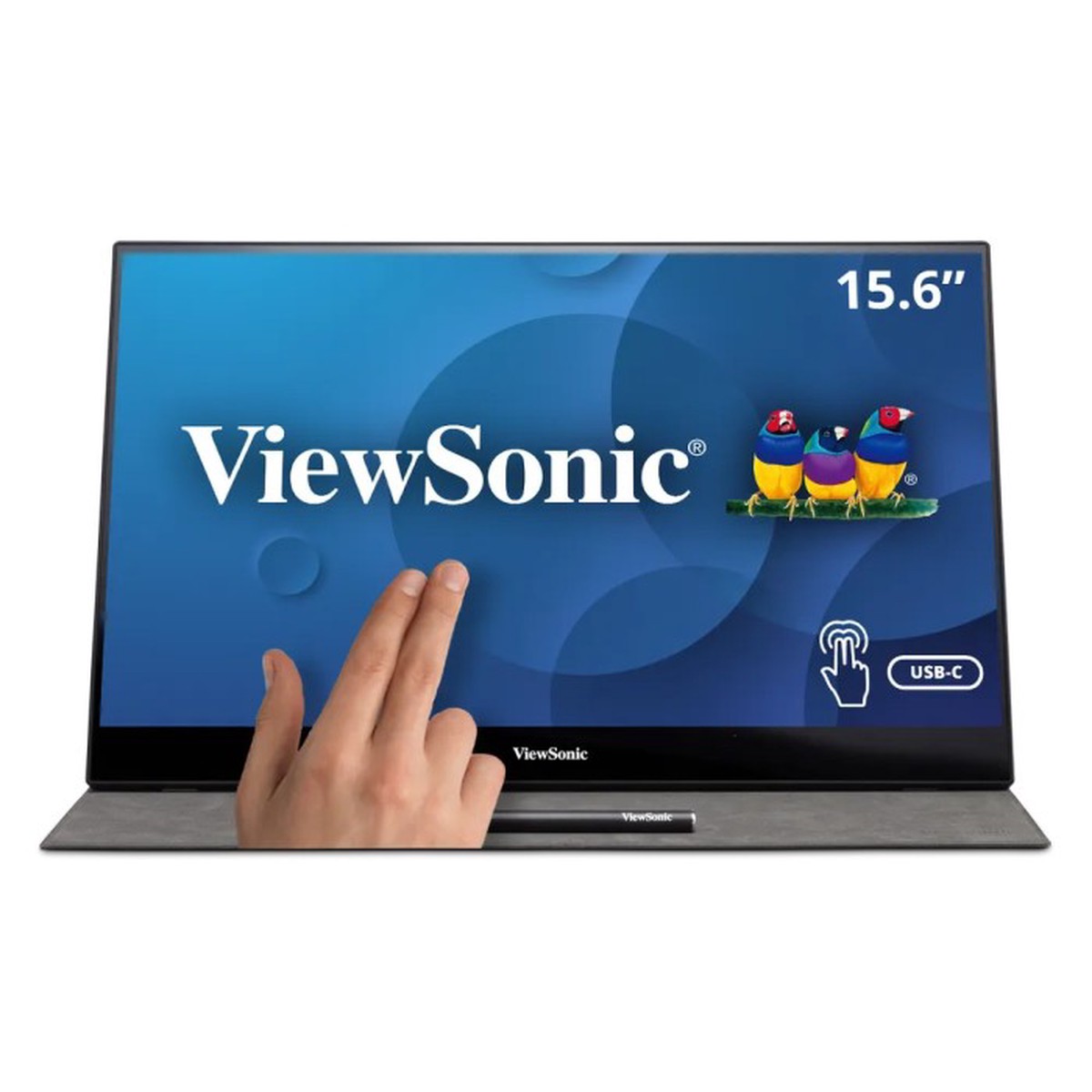

ViewSonic TD1655 16-Inch Portable Touch IPS Full HD Display

Product Overview

The ViewSonic TD1655 is a 15.6-inch portable Full HD PCAP touch monitor designed for professionals who need a lightweight, touch-capable secondary display that connects and powers over a single USB-C cable. At approximately 2 lbs and 0.6 inches thin, it fits in standard laptop bags alongside a 15-inch notebook. Dual two-way USB-C ports support power delivery in both directions, allowing the display to draw power from a laptop or receive power from a charger and pass it through to a connected device. A built-in stand and included screen cover handle positioning and transit protection without any additional accessories required.

Product Description

The TD1655 is built on a 15.6-inch IPS panel producing 19201080 Full HD resolution at 250 cd/m brightness with 178-degree horizontal and vertical viewing angles. The 10-point PCAP touch layer supports standard multi-touch gestures as well as annotation with the included passive stylus. Two USB-C ports each support up to 60W of bidirectional power delivery the display can receive power from a connected laptop, or when connected to an external USB-C charger, it can supply power to the host device. A mini-HDMI input provides an alternative video connection for systems without USB-C video output. The integrated foldout stand supports both landscape and portrait orientations with adjustable tilt. A protective cover is included for transit. Dual integrated speakers provide audio for presentation and training use. macOS touch is supported via ViewSonics vTouch driver. ENERGY STAR certified with a three-year limited warranty.

Key Features

• 15.6″ IPS PCAP Touch Monitor Full HD 19201080 resolution with 178 viewing angles and anti-glare surface.
• Dual 60W Two-Way USB-C Both ports support bidirectional power: draw power from a laptop or supply power to a connected device from an external charger.
• Mini-HDMI Input Alternative video connection for laptops or devices without USB-C video output capability.
• 10-Point PCAP Touch with Stylus Supports tap, swipe, pinch, and stylus annotation; passive stylus included.
• Built-In Stand and Screen Cover Integrated stand supports landscape and portrait tilt; cover protects the screen in transit without a separate case.
• Ultra-Portable Form Factor Approximately 2 lbs, 0.6″ thin fits in a standard laptop bag alongside a 15-inch notebook.
• macOS Touch Support vTouch driver enables touch on Intel and Apple Silicon Mac systems.
• ENERGY STAR Certified Meets commercial procurement energy efficiency requirements.

Typical Applications

• Portable secondary touch display for field technicians
• Conference room bring-your-own-display collaborative stations
• Training room annotation and hands-on demonstration displays
• Executive portable productivity display for travel
• Boardroom secondary reference monitor for presenters

Technical Specifications

Frequently Asked Questions

Q: What is the difference between the TD1655 and TD1656-2K?
A: The TD1655 is Full HD (19201080) at 15.6 inches; the TD1656-2K is WQXGA (25601600) at 16 inches with a 16:10 aspect ratio, higher brightness (330 vs 250 cd/m), and a detachable magnetic smart cover stand. The TD1656-2K is the higher-performance option; the TD1655 provides a lower entry price for standard HD portable touch use.

Q: Can the TD1655 charge my laptop?
A: When the TD1655 is connected to an external USB-C power source (charger or power bank), it can pass power through to the connected laptop. When the only power source is the laptop itself, power flows from the laptop to the display.

Q: Does a mini-HDMI adapter or cable come included?
A: Check the package contents list. A USB-C cable is typically included; a mini-HDMI cable may need to be sourced separately if required for your setup.

Q: Does the TD1655 work with macOS?
A: Touch support on macOS is enabled via ViewSonics vTouch driver on Intel and Apple Silicon systems. iOS and iPadOS are not supported.

Q: Can it be used in portrait orientation?
A: Yes. The built-in stand supports both landscape and portrait orientations with adjustable tilt.

Q: Is the TD1655 suitable for a permanent desktop setup?
A: It can be used as a permanent secondary touch monitor, but it is primarily designed for portable use. The built-in stand provides limited tilt adjustment compared to a traditional monitor stand. For a fixed-desk touch monitor, consider the TD2230 or TD2455.

Q: Is a stylus included?
A: Yes. A passive touch stylus is included in the box.
